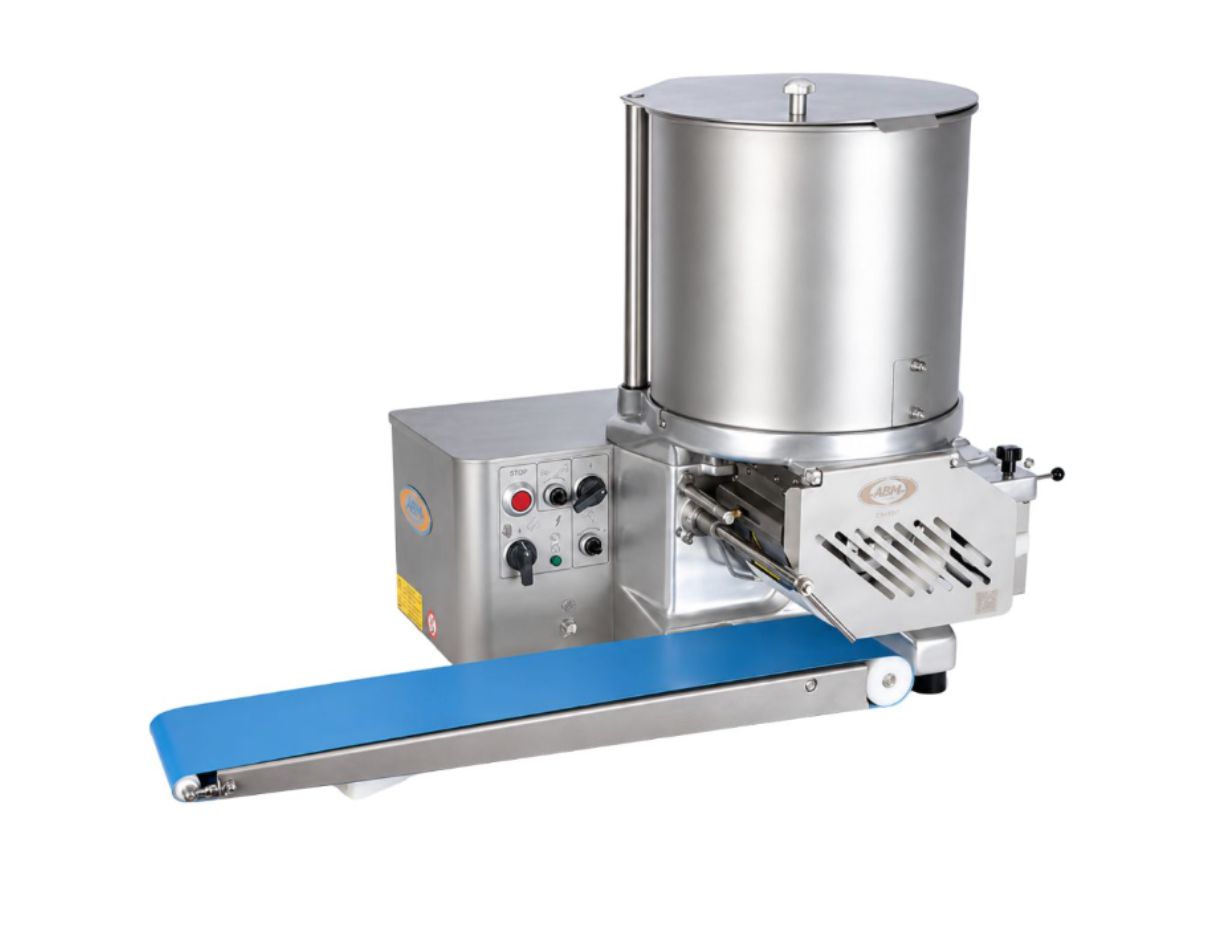

F2000PLUSB(SPECIAL)

The ABM F2000PLUSB-EXT is built for demanding, high-volume operations that need more capacity and less downtime. Powered by a 1 HP (.75kW) motor with fully synchronized drum and conveyor speeds up to 3,600 cycles per hour, it delivers consistent, precise portioning across a wide variety of meat and food products, with the added muscle of an extended hopper, longer conveyor belt, and pneumatic wire drum cleaner for faster, easier cleanup between runs. A foot switch gives operators full start/stop control of the former and conveyor, and the stainless steel feed paddle keeps product moving efficiently. Mold die depth adjusts up to 1¼" for quick weight changes without downtime. No specialized dismantling tools required. NSF and ETL certified. A full range of drum shapes are available separately, including standard round molds up to 5.12", double and triple configurations in oval, rectangular, and square, plus specialty shapes including fish, cutlet, chicken nugget, heart, and pork chop.


Upgrading to the SPECIAL model includes the longer conveyor, larger hopper, pneumatic wire cleaner, and a standard paper attachment, with no wheeled support table.
All Patty Formers
NSF certification logo with black letters NSF inside a blue circle.
Motor:
1HP - 115V | 60Hz, uses inverter card to power 3 phase motor
Materials:
Stainless steel body, hopper, hopper cover
Drum Mold:
White Poly
Std. Conv. Dims.
L25.6" x W 21.5" x H 24.8"
Weight.
160 lbs.
